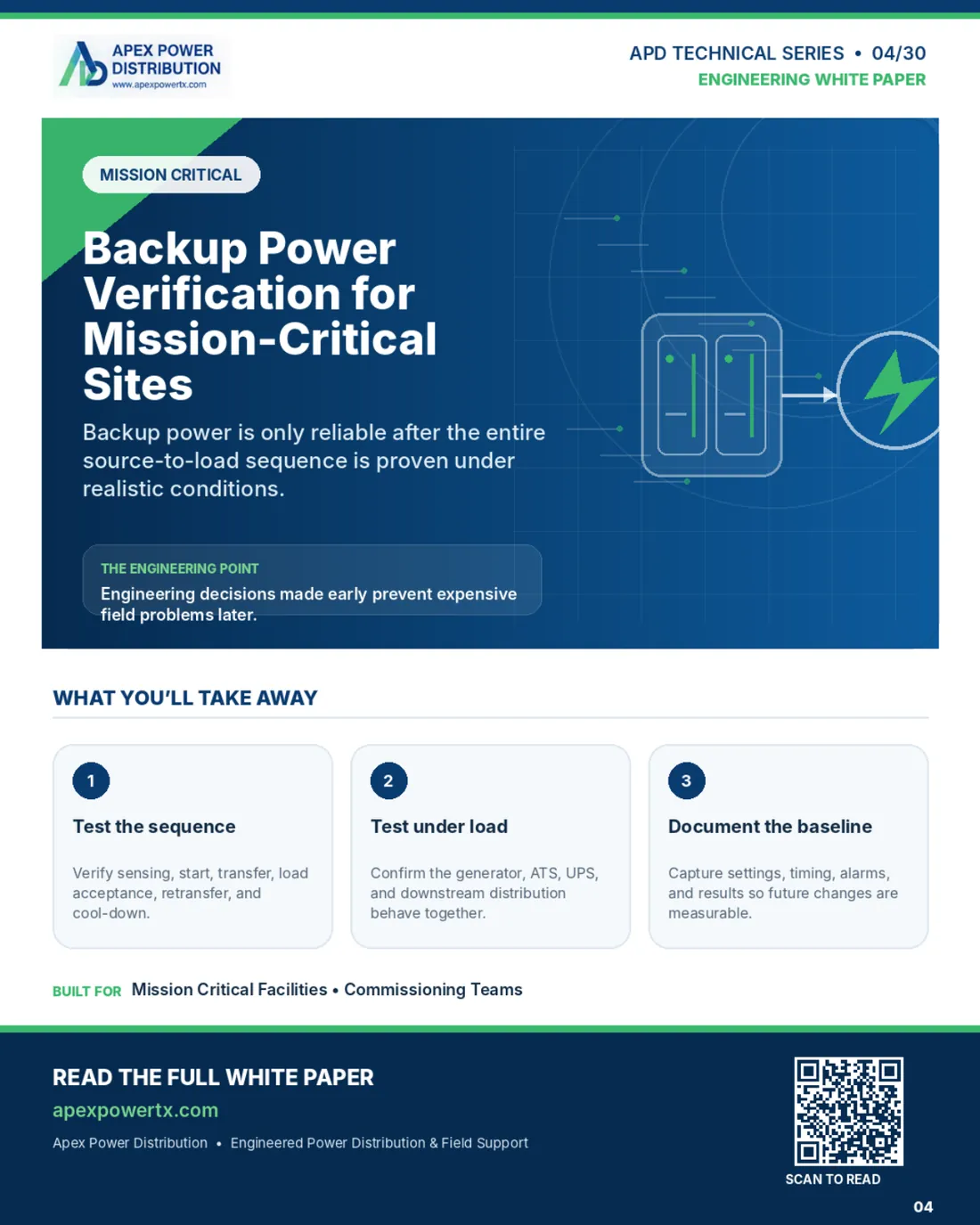

APD Technical Series · 04/30 · Mission critical
Backup Power Verification for Mission-Critical Sites
Backup power is only reliable after the entire source-to-load sequence is proven under realistic conditions.
The engineering point
Engineering decisions made early prevent expensive field problems later.
What you'll take away
Test the sequence
Verify sensing, start, transfer, load acceptance, retransfer, and cool-down.
Test under load
Confirm the generator, ATS, UPS, and downstream distribution behave together.
Document the baseline
Capture settings, timing, alarms, and results so future changes are measurable.
Built for
- Mission Critical Facilities
- Commissioning Teams
