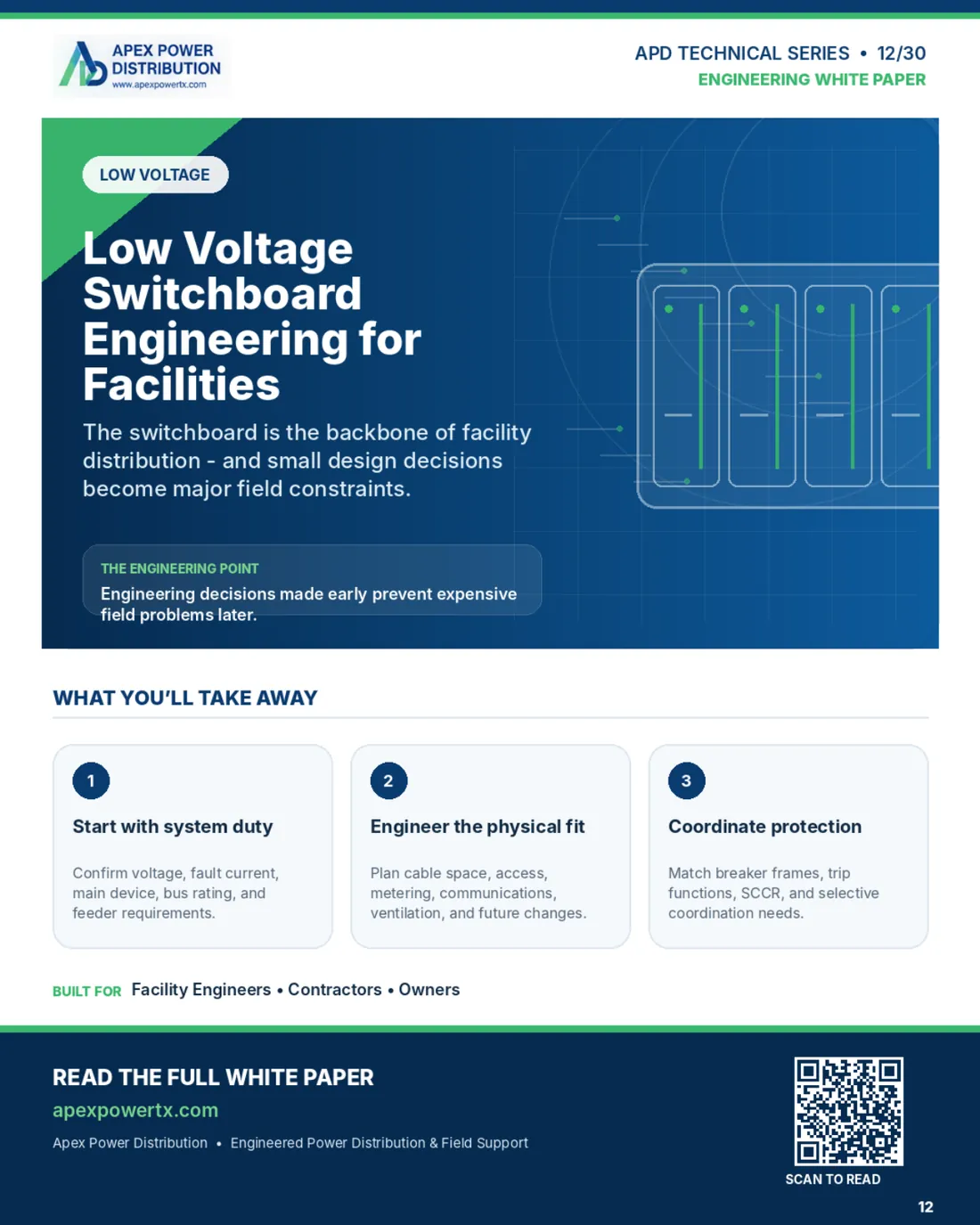

Low Voltage Switchboard Engineering for Facilities
The switchboard is the backbone of facility distribution – and small design decisions become major field constraints.
The engineering point
Engineering decisions made early prevent expensive field problems later.
What you'll take away
Start with system duty
Confirm voltage, fault current, main device, bus rating, and feeder requirements.
Engineer the physical fit
Plan cable space, access, metering, communications, ventilation, and future changes.
Coordinate protection
Match breaker frames, trip functions, SCCR, and selective coordination needs.
Built for
- Facility Engineers
- Contractors
- Owners
Go deeper
UL 891 Switchboards: Scope, Construction and Application
UL 891 is the listing standard for deadfront switchboards, the workhorse of service entrance and low-voltage distribution at 600 V and below. This article explains its scope, the construction and ratings behind the nameplate, how it relates to the NEC and NEMA PB 2, and the limits that push a project toward UL 1558 switchgear instead.
